| Вендор |
MSI
|
| Код виробника |
MEG Z890 ACE
|
| Гарантія (міс.) |
36
|
| Сокет |
Socket 1851
|
| Підтримка процесорів |
Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
|
| Чіпсет |
Intel Z890
|
| Пам'ять |
DDR5
|
| Підтримка пам'яті |
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s
Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
* The DIMM slots on this motherboard only have single-sided latches.
** Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/
|
| Слоти розширення |
3x PCI-E x16 slot (Qty)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
• PCI_E1 support manual BIOS adjustment to X8+X8/X8+X4+X4
• PCI_E2 support manual BIOS adjustment to X4+X4
* PCI_E1 slot will run at x8 speed when PCI_E2 slot installing device.
** PCI_E1 slot will run at x8 speed and PCI_E2 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in the M2_4 slot
|
| Накопичувач |
5x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280 devices
4x SATA 6G (Qty)
* M2_4 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment.
** M2_4 and M2_5 cannot support 22110 Device at the same time.
*** Please refer to the manual for M.2 SSD heatsink restrictions
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
|
| LAN |
1x Marvell® AQC113CS 10Gbps LAN
|
| Бездротові інтерфейси |
Intel® Killer™ BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2
|
| Аудіо |
Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA
7.1-Channel USB High-Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
|

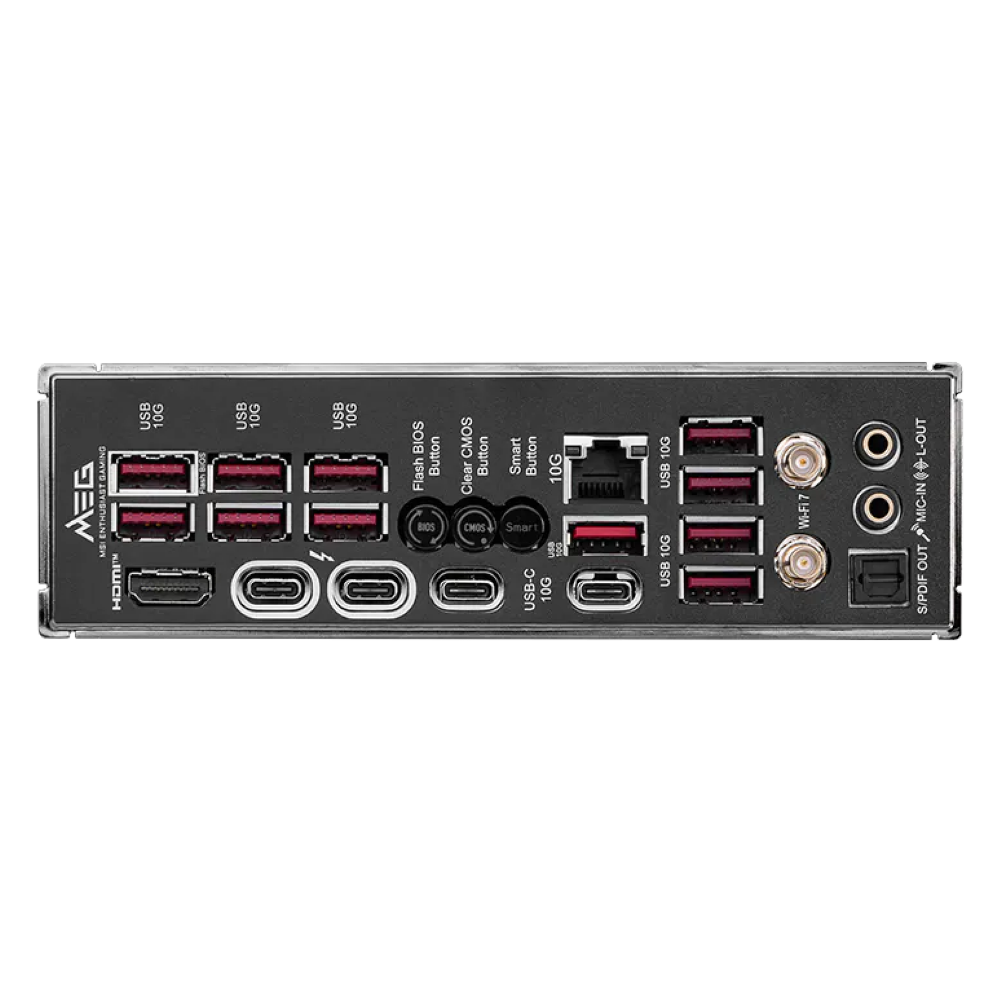

| Порти на задній панелі |
– 11x USB 10Gbps (Type-A)
– Flash BIOS Button
– Clear CMOS Button
– Smart Button
– 10G LAN
– Wi-Fi / Bluetooth
– HD Audio Connectors
– 1x HDMI™ 2.1 Port
– 2x Thunderbolt™ 4 40Gbps (Type-C)
– 2x USB 10Gbps (Type-C)
– Optical S/PDIF-Out
|
| Внутрішні роз'єми |
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
2x PUMP_SYS Fan
5x System Fan
1x ARGB+FAN+USB2.0 Header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Water Flow connector
1x Slow Mode Booting Jumper(JSLOW)
1x Front Audio (JAUD)
2x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
V-check point
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
|
| Підтримка ОС |
Support for Windows® 11 64-bit
|
| Форм-фактор |
ATX
|
| Габарити |
243.84 mm x 304.8 mm
|
| * |
Характеристики та комплектація товару можуть змінюватися виробником без попередження.
|
