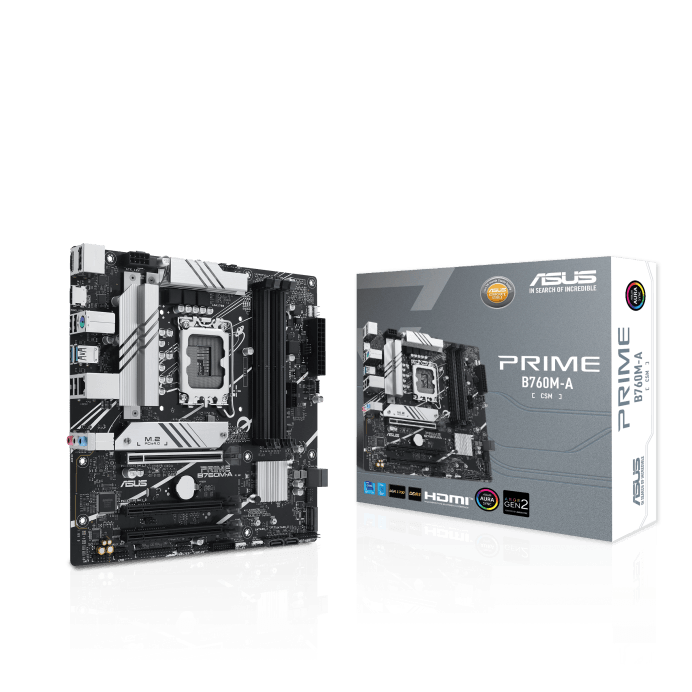

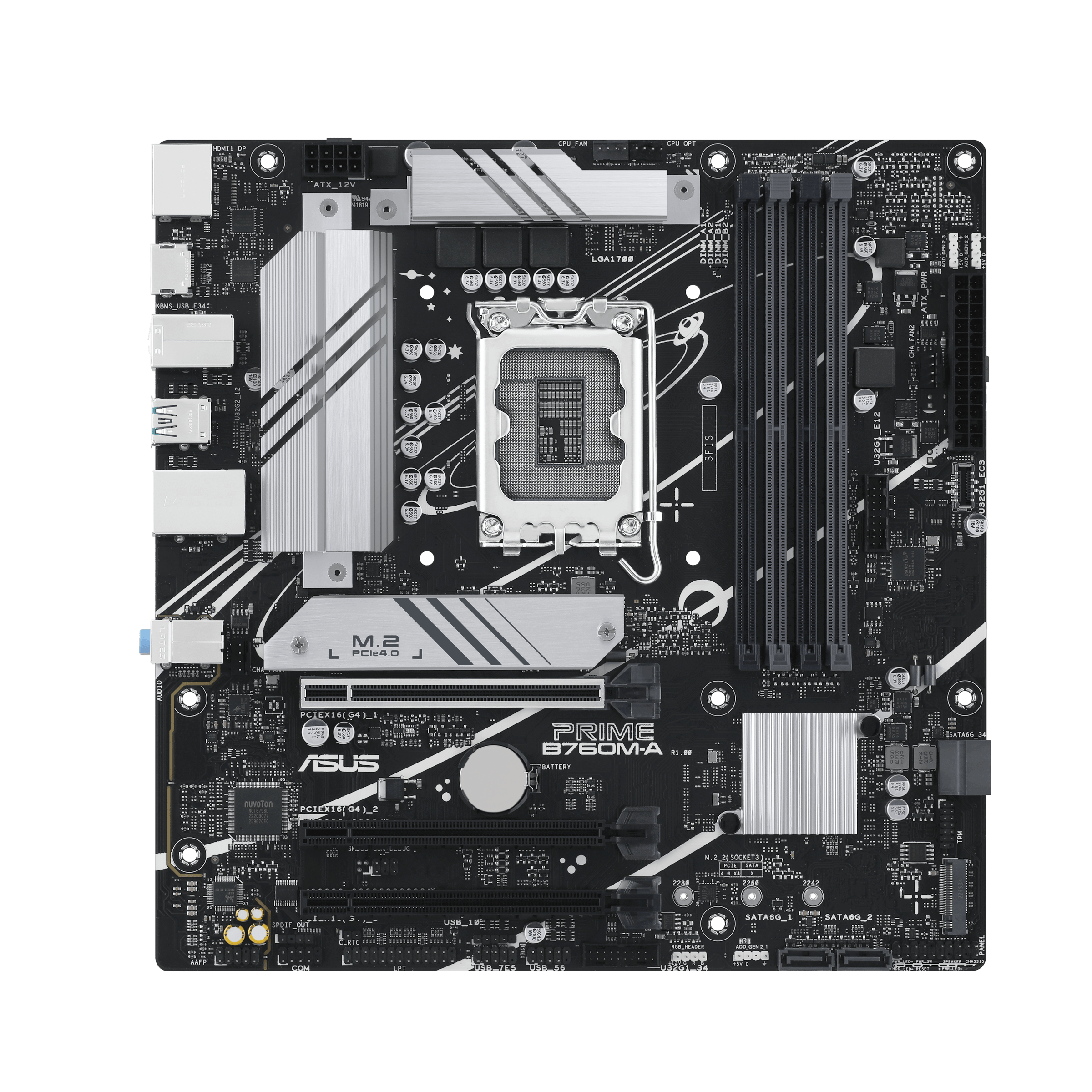

Материнська плата Asus Prime B760M-A-CSM

₴6,699.00

Доступно за замовленням

Артикул: MB1047 Категорія: Позначки: , , ,
Intel® B760 (LGA 1700) mATX motherboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, Dual HDMI™, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync
  • Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
  • Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
  • Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
  • ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection
Вендор

Код виробника

Гарантія (міс.)

Сокет

Підтримка процесорів

Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
*Refer to http://www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Чіпсет

Пам'ять

Підтримка пам'яті

4 x DIMM slots, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Слоти розширення

Intel® 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot
Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode)
Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Накопичувач

Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
LAN

1 x Realtek 2.5Gb Ethernet
Аудіо

Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

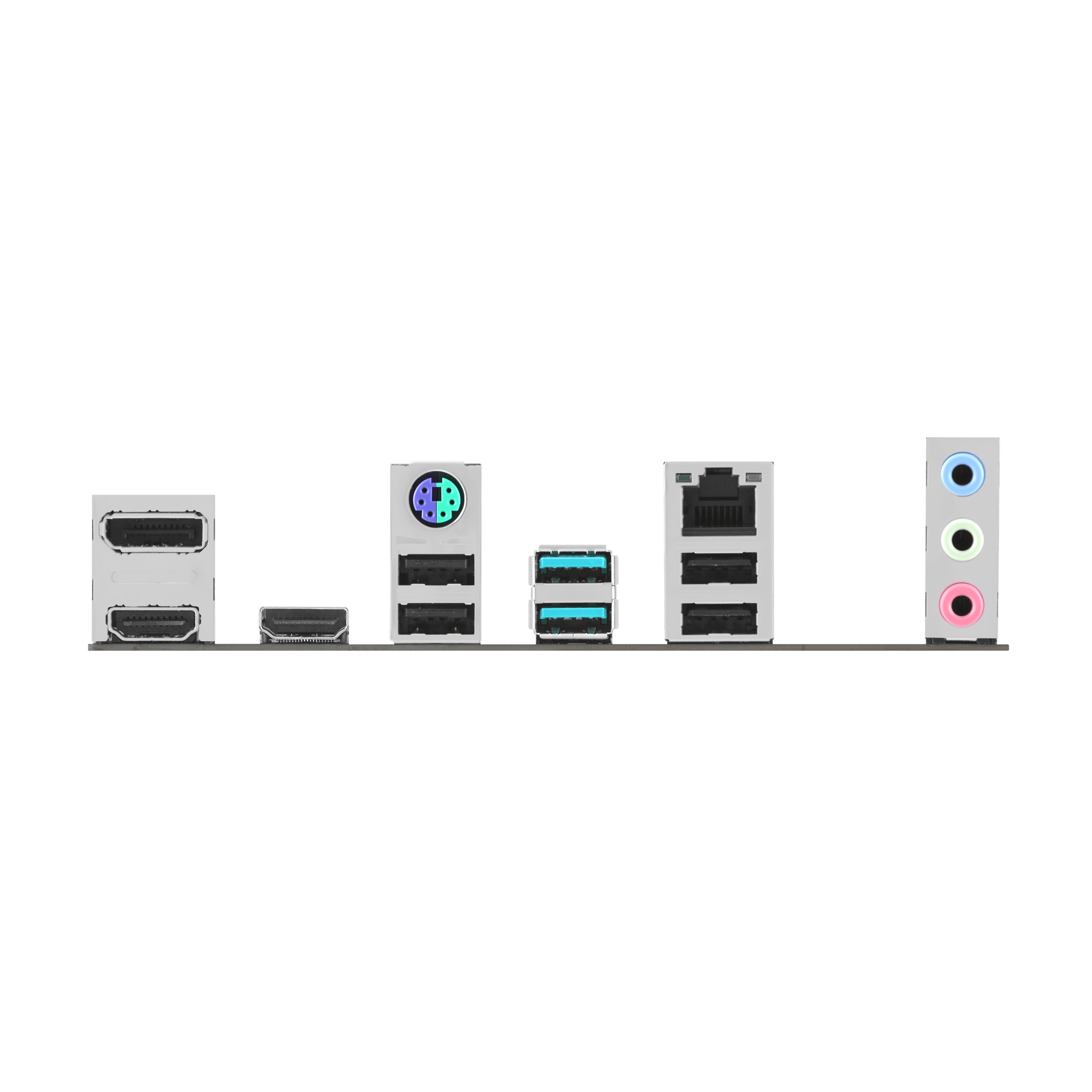

Порти на задній панелі

-2 x USB 3.2 Gen 2 ports (2 x Type-A )
– 4 x USB 2.0 ports (4 x Type-A)
– 1 x DisplayPort
– 2 x HDMITM ports
– 1 x Wi-Fi Module
– 1 x Realtek 2.5Gb Ethernet port
– 3 x Audio jacks
– 1 x PS/2 Keyboard/Mouse combo port
Внутрішні роз'єми

Fan and Cooling related
– 1 x 4-pin CPU Fan header
– 1 x 4-pin CPU OPT Fan header
– 2 x 4-pin Chassis Fan headers
Power related
– 1 x 24-pin Main Power connector
– 1 x 8-pin +12V Power connector
Storage related
– 2 x M.2 slots (Key M)
– 4 x SATA 6Gb/s ports
USB
– 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
-1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
– 2 x USB 2.0 headers support 4 additional USB 2.0 ports
– 1 x USB 2.0 header supports 1 additional USB 2.0 port
Miscellaneous
– 3 x Addressable Gen 2 headers
– 1 x Aura RGB header
– 1 x Clear CMOS header
– 1 x COM Port header
– 1 x Front Panel Audio header (AAFP)
– 1 x LPT header
– 1 x S/PDIF Out header
– 1 x SPI TPM header (14-1pin)
– 1 x 20-3 pin System Panel header with Chassis intrude function
BIOS

128 Mb Flash ROM, UEFI AMI BIOS
Підтримка ОС

Windows® 11, Windows® 10 64-bit
Форм-фактор

Габарити

9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
*

Характеристики та комплектація товару можуть змінюватися виробником без попередження.
