| Вендор |
ASROCK
|
| Код виробника |
B760M PRO RS
|
| Гарантія (міс.) |
24
|
| Сокет |
Socket 1700
|
| Підтримка процесорів |
– Supports 13th Gen & 12th Gen and next gen Intel® Core™ Processors (LGA1700)
– Supports Intel® Hybrid Technology
– Supports Intel® Turbo Boost Max 3.0 Technology
– Supports Intel® Thermal Velocity Boost (TVB)
– Supports Intel® Adaptive Boost Technology (ABT)
|
| Чіпсет |
Intel B760
|
| Пам'ять |
DDR5
|
| Підтримка пам'яті |
– Dual Channel DDR5 Memory Technology
– 4 x DDR5 DIMM Slots
– Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
– Max. capacity of system memory: 192GB
– Supports Intel® Extreme Memory Profile (XMP) 3.0
*1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
|
| Слоти розширення |
CPU: – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset: – 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
– Supports AMD CrossFire™
*Supports NVMe SSD as boot disks
|
| Накопичувач |
CPU:
– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 4 x SATA3 6.0 Gb/s Connectors
*Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks
|
| LAN |
– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Dragon 2.5G LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User Friendly UI
– Visual Network Usage Statistics
– Optimized Default Setting for Game, Browser, and Streaming Modes
– User Customized Priority Control
|
| Аудіо |
– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Nahimic Audio
|

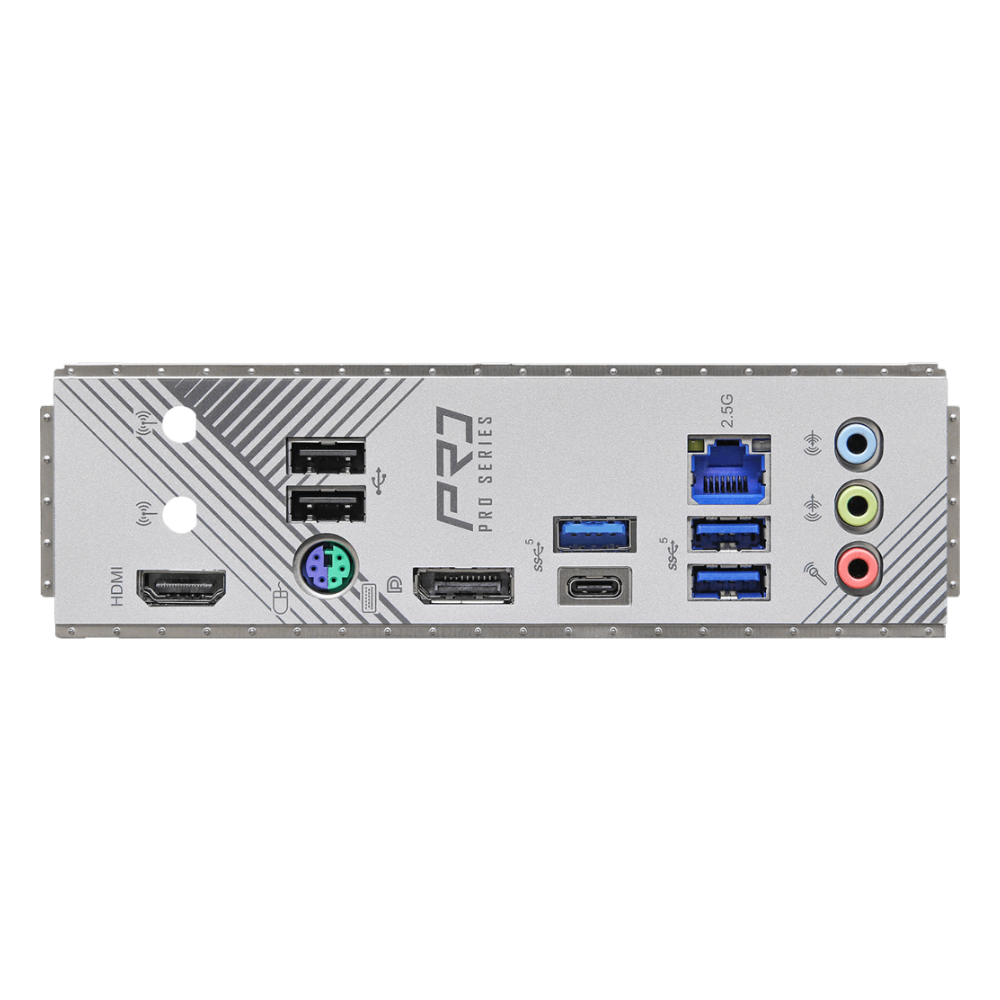

| Порти на задній панелі |
– 2 x Antenna Mounting Points
– 1 x PS/2 Mouse/Keyboard Port
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 1 x USB 3.2 Gen1 Type-C Port
– 3 x USB 3.2 Gen1 Type-A Ports
– 2 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– HD Audio Jacks: Line in / Front Speaker / Microphone
|
| Внутрішні роз'єми |
– 1 x SPI TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x RGB LED Header*
– 3 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen1 Header
*Supports in total up to 12V/3A, 36W LED Strip
**Support in total up to 5V/3A, 15W LED Strip
***CPU_FAN1 supports the fan power up to 1A (12W).
****CPU_FAN2/WP supports the fan power up to 2A (24W).
*****CHA_FAN1~4/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.
|
| BIOS |
– 128Mb AMI UEFI Legal BIOS with GUI support
|
| Підтримка ОС |
Microsoft® Windows® 10 64-bit / 11 64-bit
|
| Форм-фактор |
MicroATX
|
| Габарити |
9.6-in x 9.6-in, 24.4 cm x 24.4 cm
|
| * |
Характеристики та комплектація товару можуть змінюватися виробником без попередження.
|
