| Вендор |
ASROCK
|
| Код виробника |
X870 PRO RS
|
| Гарантія (міс.) |
36
|
| Сокет |
Socket AM5
|
| Підтримка процесорів |
Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
|
| Чіпсет |
AMD X870
|
| Пам'ять |
DDR5
|
| Підтримка пам'яті |
– Dual Channel DDR5 Memory Technology
– 4 x DDR5 DIMM Slots
– Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)*
– Max. capacity of system memory: 256GB
– Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
|
| Слоти розширення |
CPU:
– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
– Supports AMD CrossFire™
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)
* PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
If M2_2 is occupied, PCIE2 will be disabled.
Supports NVMe SSD as boot disks
|
| Накопичувач |
CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
– 2 x SATA3 6.0 Gb/s Connectors
ASMedia ASM1061:
– 2 x SATA3 6.0 Gb/s Connectors
* Supports NVMe SSD as boot disks.
M2_1 is the first priority for M.2 installation.
M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.
If M2_2 is occupied, PCIE2 will be disabled.
If SATA3_1 or SATA3_2 is occupied, M2_3 will downgrade to Gen3x2 mode.
– Supports RAID 0 and RAID 1 for SATA storage devices
– Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
* Requires additional M.2 NVMe expansion cards to support RAID 10
|
| LAN |
– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Dragon 2.5G LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User Friendly UI
– Visual Network Usage Statistics
– Optimized Default Setting for Game, Browser, and Streaming Modes
– User Customized Priority Control
|
| Бездротові інтерфейси |
–
|
| Аудіо |
– 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
– Impedance Sensing on Rear Out port
– Individual PCB Layers for R/L Audio Channel
– Nahimic Audio
|

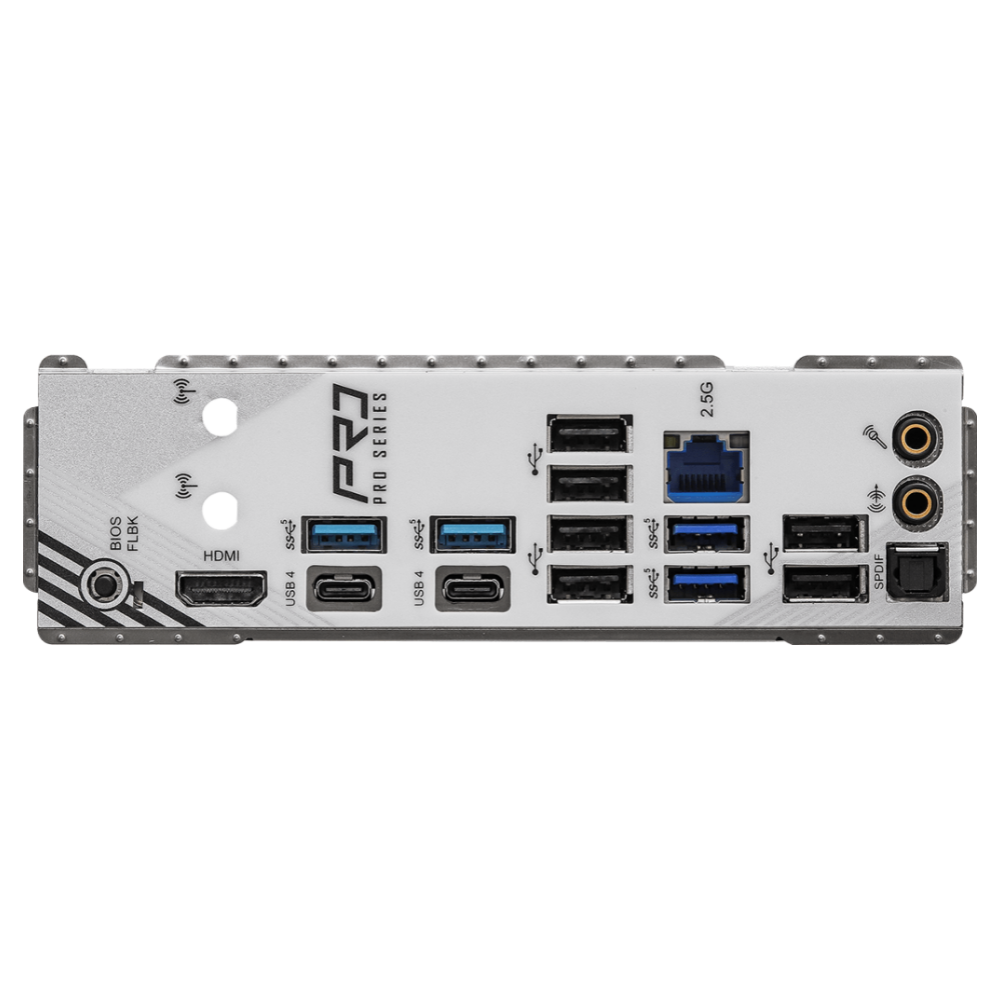

| Порти на задній панелі |
– 2 x Antenna Mounting Points
– 1 x HDMI Port
– 1 x Optical SPDIF Out Port
– 2 x USB4 Type-C Ports (40 Gb/s)*
– 4 x USB 3.2 Gen1 Type-A Ports
– 6 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– 1 x BIOS Flashback Button
– 1 x Line Out Jack (Gold Audio Jack)
– 1 x Microphone Input Jack (Gold Audio Jack)
* Supports USB PD 3.0 up to 5V@3A (15W) charging
|
| Внутрішні роз'єми |
– 1 x Thermistor Cable Header
– 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 3 x Addressable LED Headers**
– 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
– 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
– 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
– 1 x 24 pin ATX Power Connector
– 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
CPU_FAN2, CHA_FAN1~4 and AIO_PUMP support the fan power up to 3A (36W).
CPU_FAN2, CHA_FAN1~4 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.- 256Mb AMI UEFI Legal BIOS with GUI support
|
| BIOS |
256Mb AMI UEFI Legal BIOS with GUI support
|
| Підтримка ОС |
– Microsoft Windows® 10 64-bit / 11 64-bit
|
| Форм-фактор |
ATX
|
| Габарити |
12.0-in x 9.6-in (30.5 cm x 24.4 cm)
|
| * |
Характеристики та комплектація товару можуть змінюватися виробником без попередження.
|
